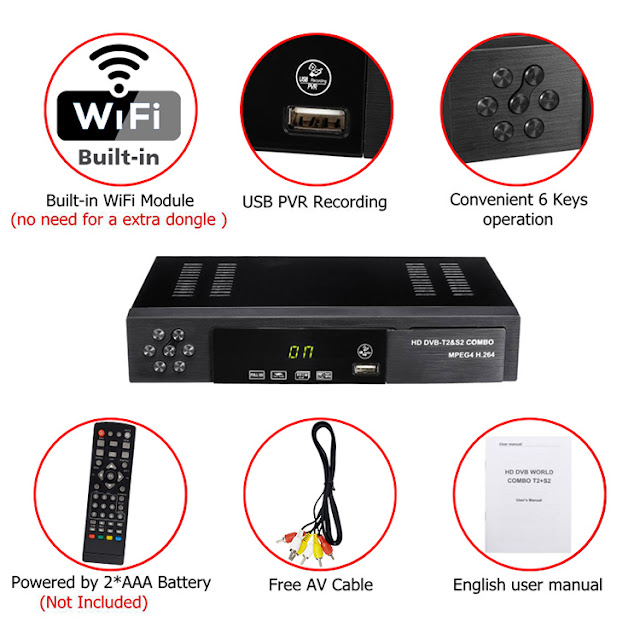

HD DVB T2 S2 Combo CCCAM box has upgrade newest system version this year, and supports iptv streams, Google play, YouTube, H.264 Full HD 1080P, with certified Hi-speed USB connection satellite tv receiver set top box.

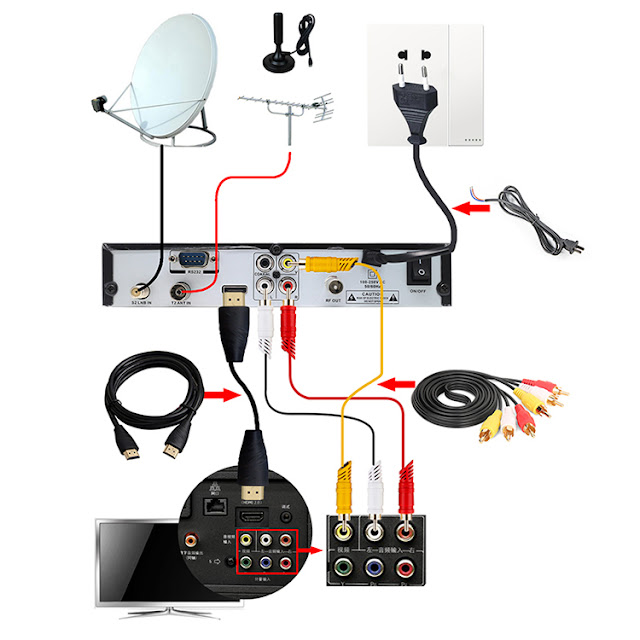

You can connect the DVB T2&S2 combo box with TV set by HD cable or RCA cable. And connect outdoor or indoor tv antenna to receive terrestrial signal. Specifications:1. DVB-T2/DVB-T compatible, supports MHEG4 Cccam2. Compatible with 576i/576p/720p/1,080i/1080P video formats3. MST 7T00(AC3) chipset solution(Truly AC3 Surround)4. Fully compliant with DVB-T2 standard5. Supports HDMI 2.0 (1080P)6. Auto and manually scan all available TV and radio channels,Parental guidance locking7. Auto/manual program search, multi-language supported8. Supports MPEG-1, MPEG-2, MPEG-4 and H.264 decoder (up to 1,920 x 1,080 pixels)9. Powerful and highly effective 7days EPG function10. USB2.0 host support upgrade, PVR, time shifting and media play with U-Flash or HDD11. Supports HDMI output, scart output, coaxial, RF in and output12. Frequency Range: VHF 174~230MHZ, UHF 470~862MHZ13. Dual CVBS (AV) DVB-T2 S2 Tuner:*Input Frequency: VHF 174~230 MHZ, UFH 470~ 862 MHZ*RF input level: -78~20 dBm*RF Bandwidth: 7MHZ and 8MHZ*Signal input: IEC-type female*QPSK, 16QAM,64QAM, 256QAM*FEC: 1/2, 2/3, 3/4, 4/5, 5/6 Multimedia format:*Decoder format: MPEG 4 AVC/H.264 HP/L4MPEG2 /MP /MP.HL*Output format:480i/480p/567i/567p/720i/720p/1080p/1080i*Output port: HDMI,AV/Scart(optional)*Decoder fomat: MPEG-1(layer 1&2&3),WMA.AC3,AAC*Audio output: Coaxial, L/R(AV or Scart) Hardware Interface:*Indicators: Power, signal lock*IR Receiver: 38KHZ*LED Display *HDMI 1.3*Loop through output: IEC- type, connector,single tuner*Coaxial output *USB2.0*HD out 2.0 Applications:*Support USB wifi dongle, Megogo, Youtube, lPTV all available*Support Subtitle, Teletext, Multi-language, Parentallock*Support PVR for plug-in USB HDD*Software upgrades via USB*Stores up to 1000 programs and keeps in memory while power off*Memory save while power off*Powerful and highly effective 7 days EPG Function*Offers multiple entertainments and games HD DVB-T2&S2 Combo Setting page: hd digital dvb-t2&s2 combo setup:
Please subscribe our YouTube channel to get update about the DVB T2&S2 Combo box, will take more videos about the DVB T2 S2 receiver more specifications!
